TEA's TTC Thermal Measurement Systems provide complete instrumentation for chip-level thermal data acquisition, enabling accurate thermal resistance and impedance measurements using TEA thermal test chips.

The systems are designed to work seamlessly with the TTC-1001 and TTC-1002 thermal test chips, providing precise current sourcing for the diode temperature sensors and accurate voltage measurement for temperature determination.

Application information can be downloaded here.

Products

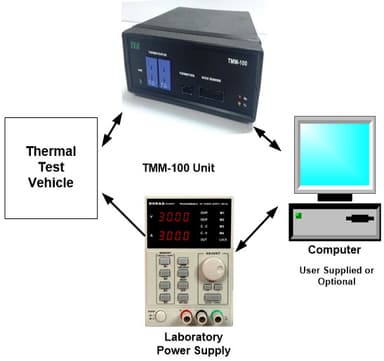

• TMS-5000 — TTC Thermal Measurement System
• TMS-5100 — TTC Thermal Measurement System
  (with Power Cycling)
• TMM-100 — Temperature Measurement Module (8 channels)
• TMM-200 — Temperature Measurement Module (20 channels)

Further details can be found in the TMM-100 datasheet or the TMM-100 User Manual (available by e-mail, please contact us).

Key Capabilities

• Precision diode current sourcing (1mA reference)
• High-resolution voltage measurement
• Automated thermal resistance calculation
• Transient thermal impedance measurement
• Compatible with TEA TTC product family
